The Architectural Challenge of Beijing’s Hutongs

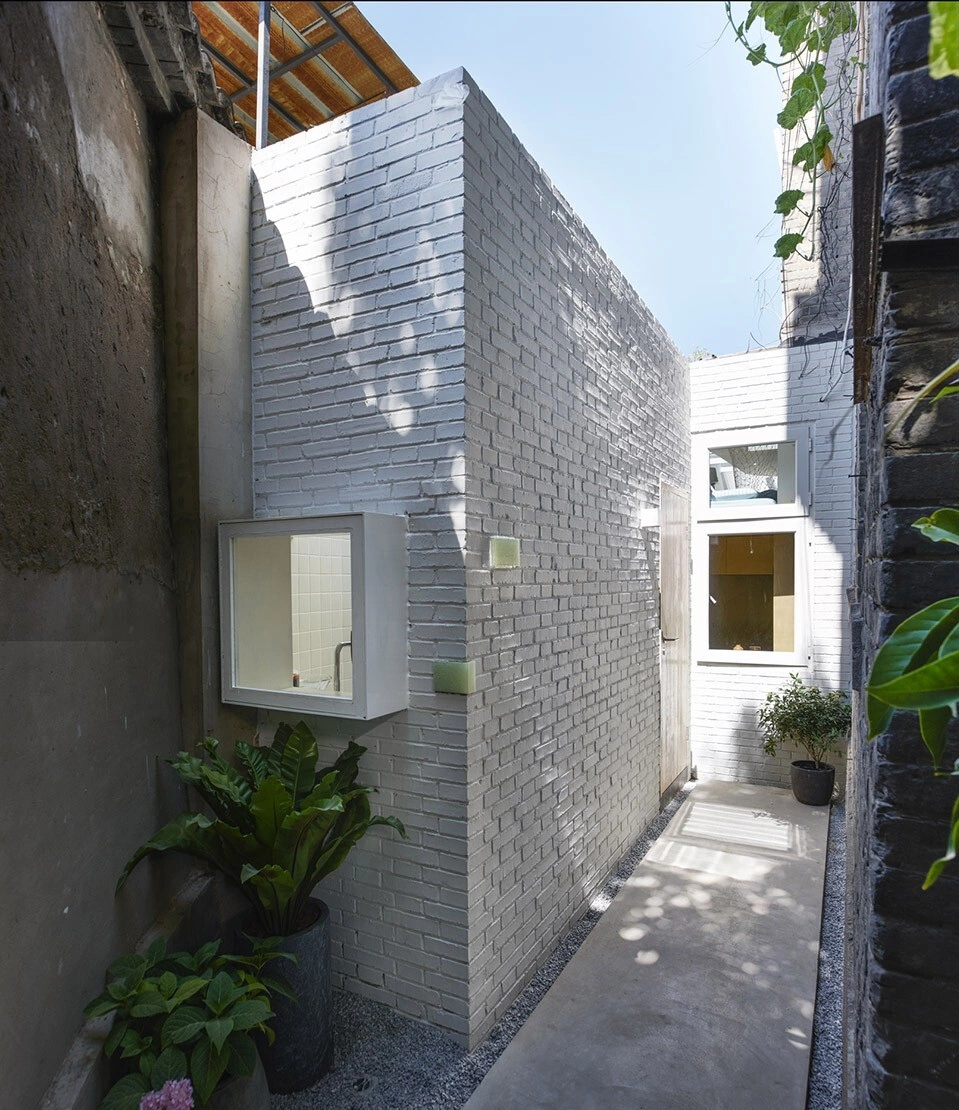

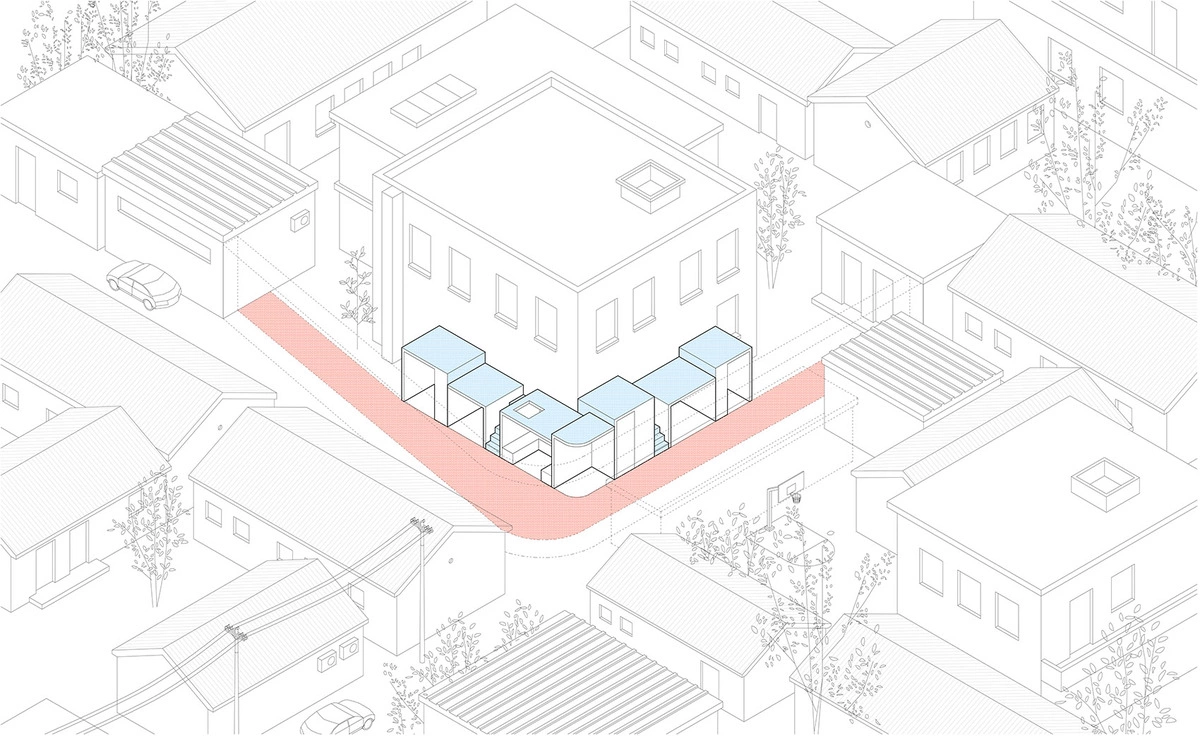

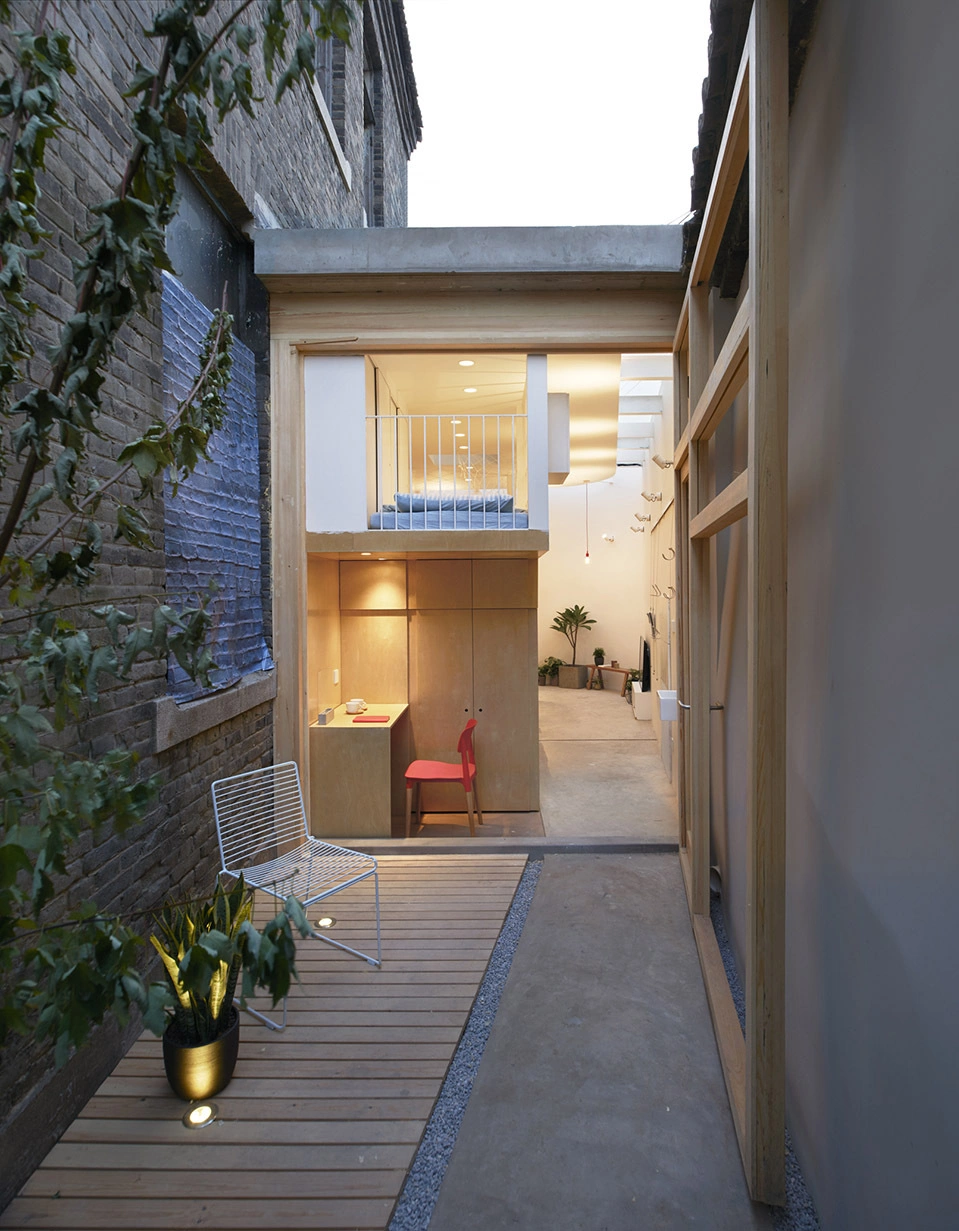

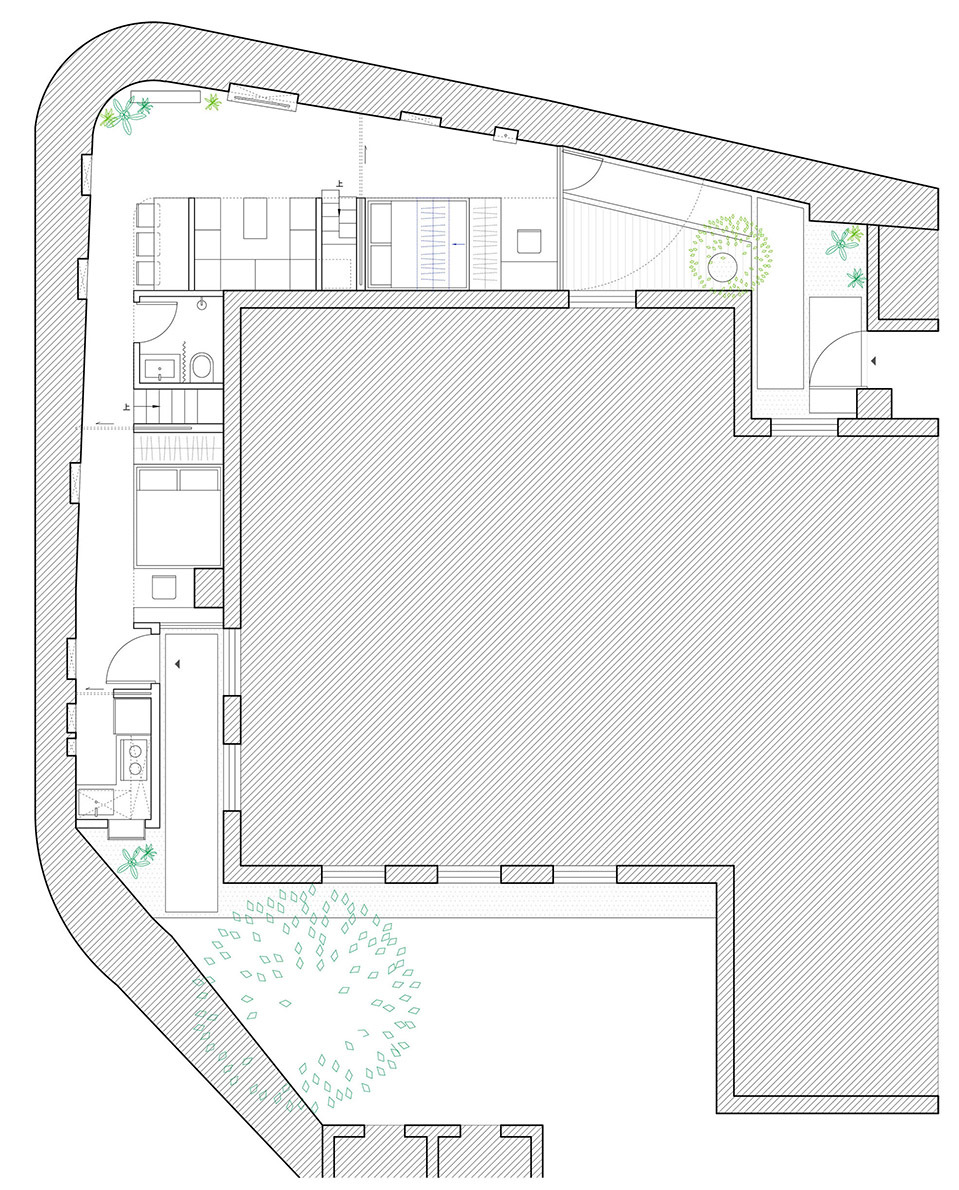

The project, completed in September 2026, centers on a residence characterized by a challenging L-shaped floor plan. The structure is nestled within a narrow, confined alleyway between existing boundary walls and the exterior facade of a neighboring two-story building. Historically, these Hutong dwellings were never intended for modern family densities, often lacking natural light, adequate ventilation, and the basic amenities required for contemporary living.
The primary design obstacle for lead architects Shuhei Aoyama, Yoko Fujii, and Lingzi Liu was to maximize the limited footprint while maintaining privacy and a sense of connection for a six-member family. The lack of natural light was a critical concern; because the house is wedged in a tight corridor, the interior was previously dark and claustrophobic, creating an environment that felt increasingly incompatible with the needs of a growing, multi-generational household.
The Box-in-Box Solution

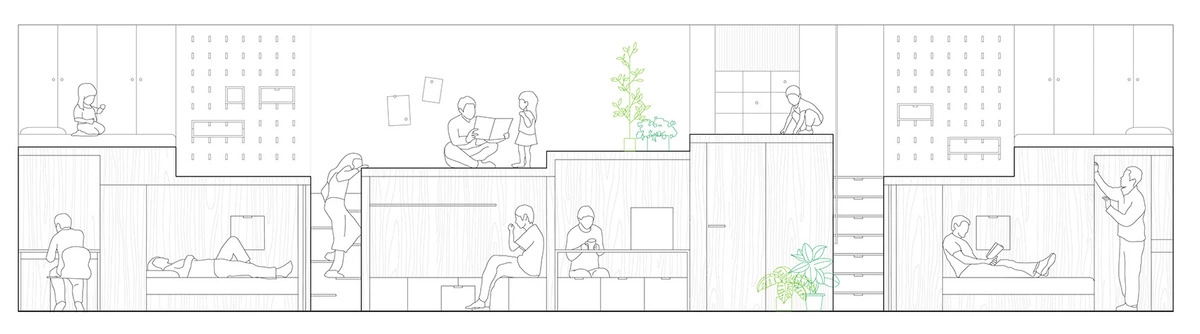

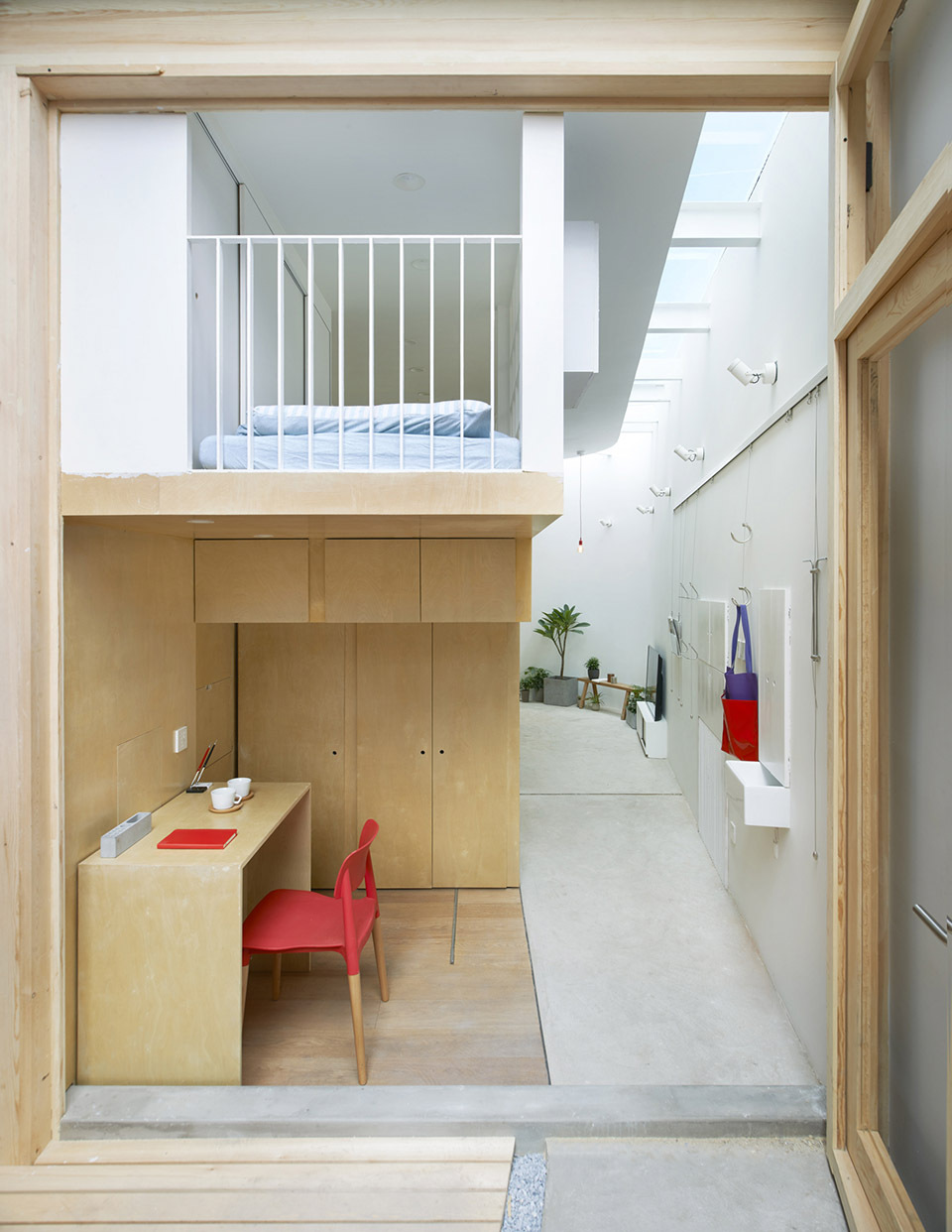

To resolve these constraints, the design team implemented a "box-in-box" structural strategy. By utilizing a series of interconnected, modular "boxes" of varying heights, the architects were able to reclaim unused vertical space. This approach effectively separated the home into distinct zones—living, dining, sleeping, working, and sanitary areas—without the need for traditional, space-consuming solid walls.

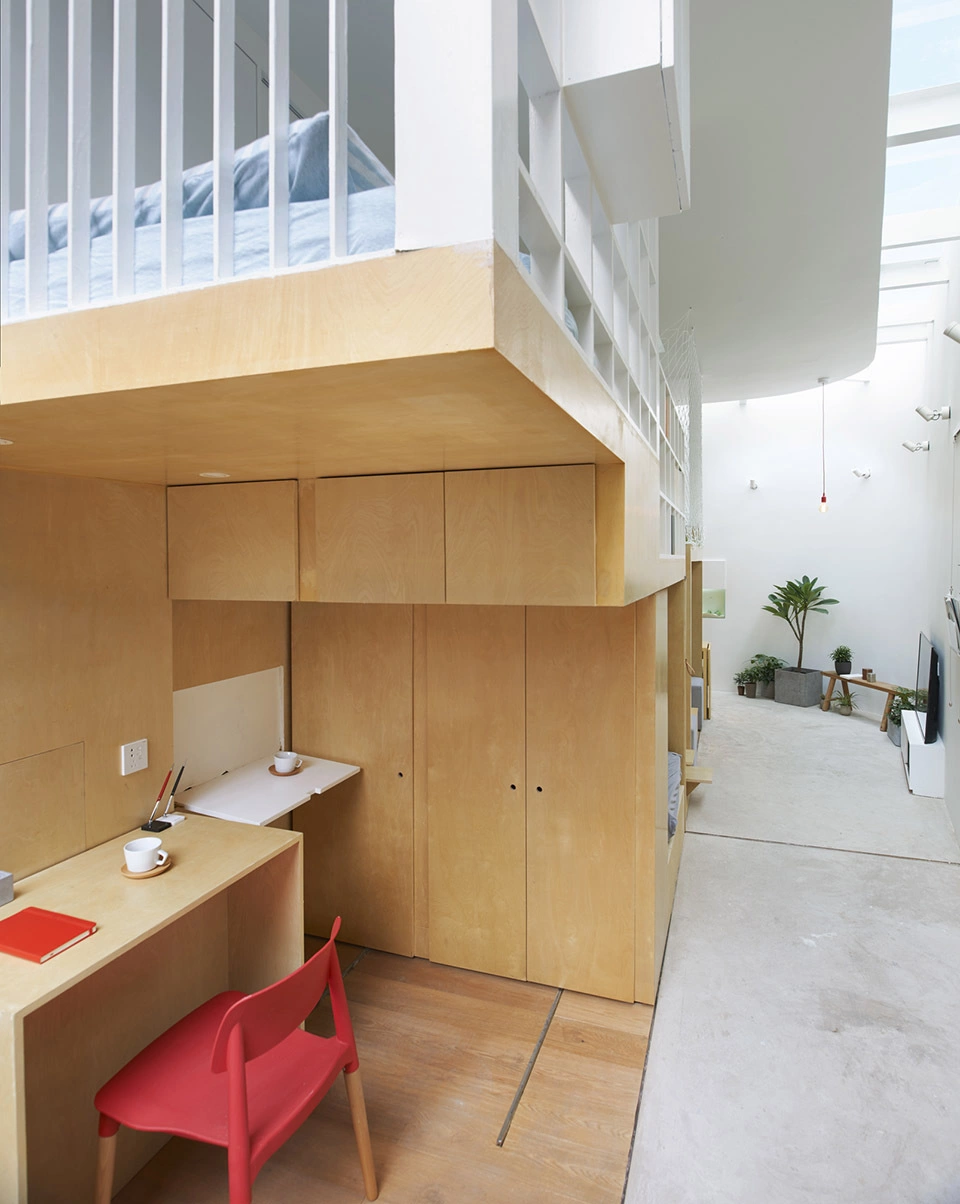

The dimensions of each box were meticulously calculated based on the anthropometrics of the residents and the specific functional requirements of each area. For example, the height of the sleeping and work areas was adjusted to optimize ergonomic comfort, while common areas were designed to allow for fluid movement. This spatial layering allows the home to accommodate six people while retaining an airy, open-plan feel that belies the actual square footage.
Natural Light and Vertical Connectivity

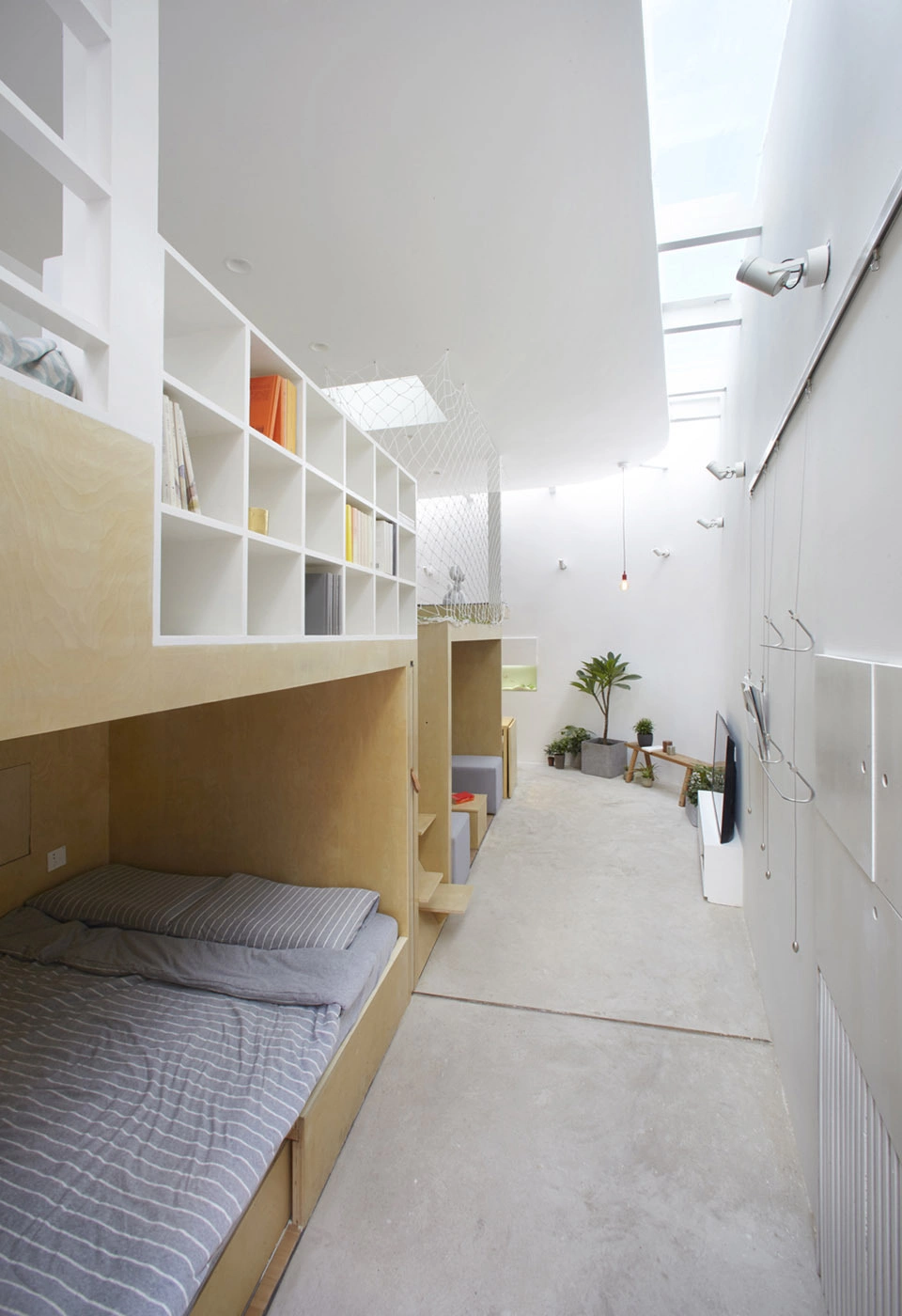

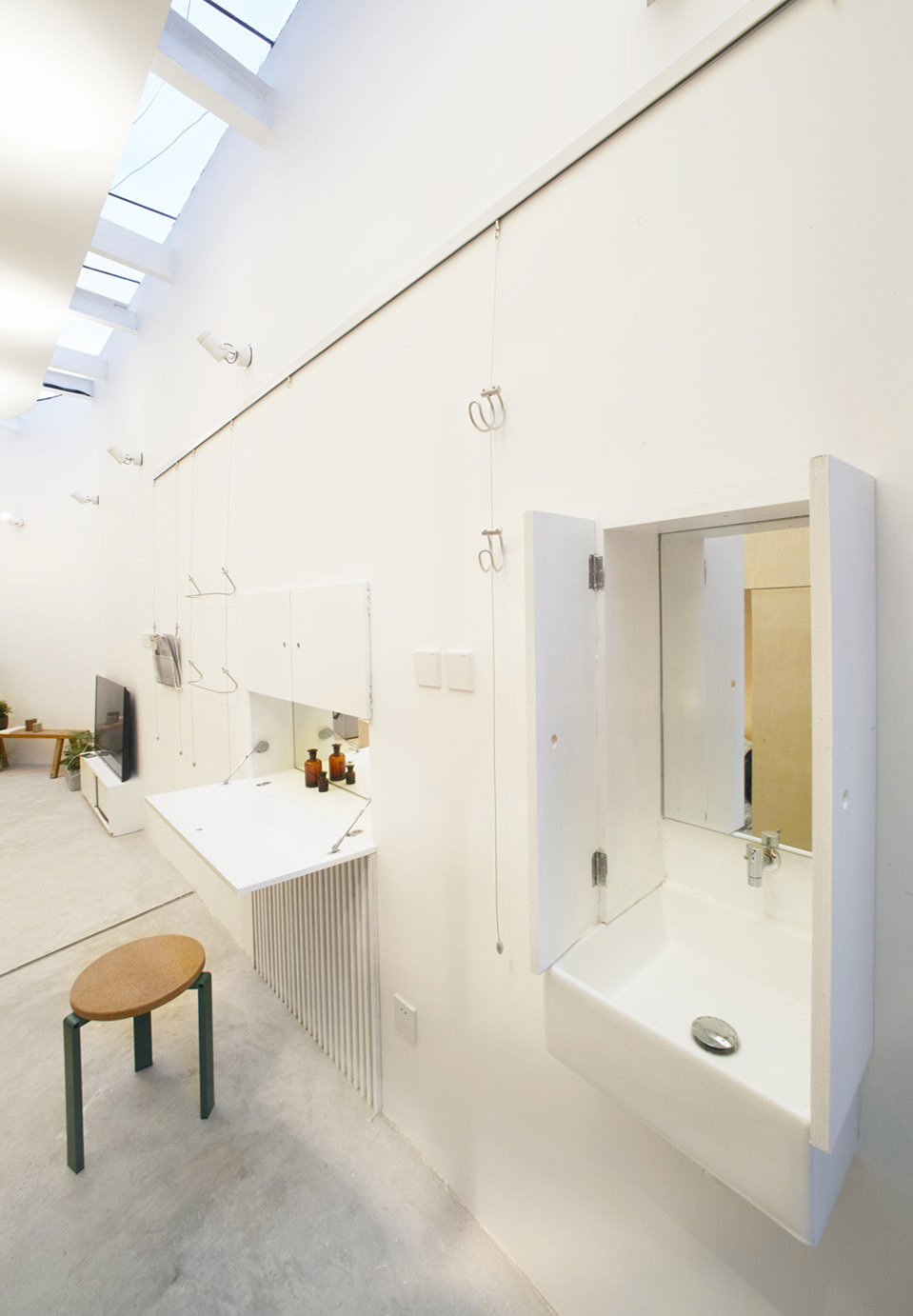

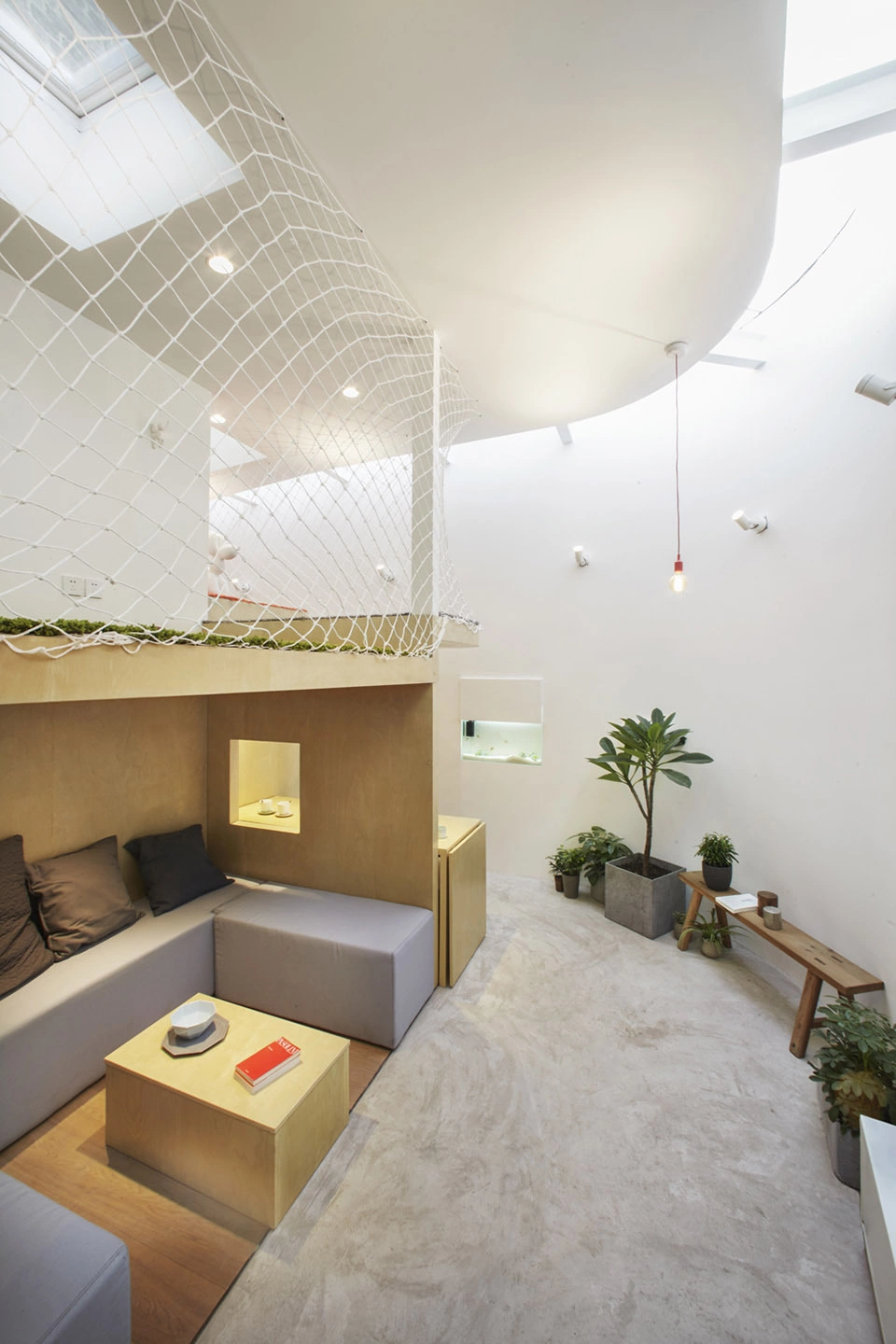

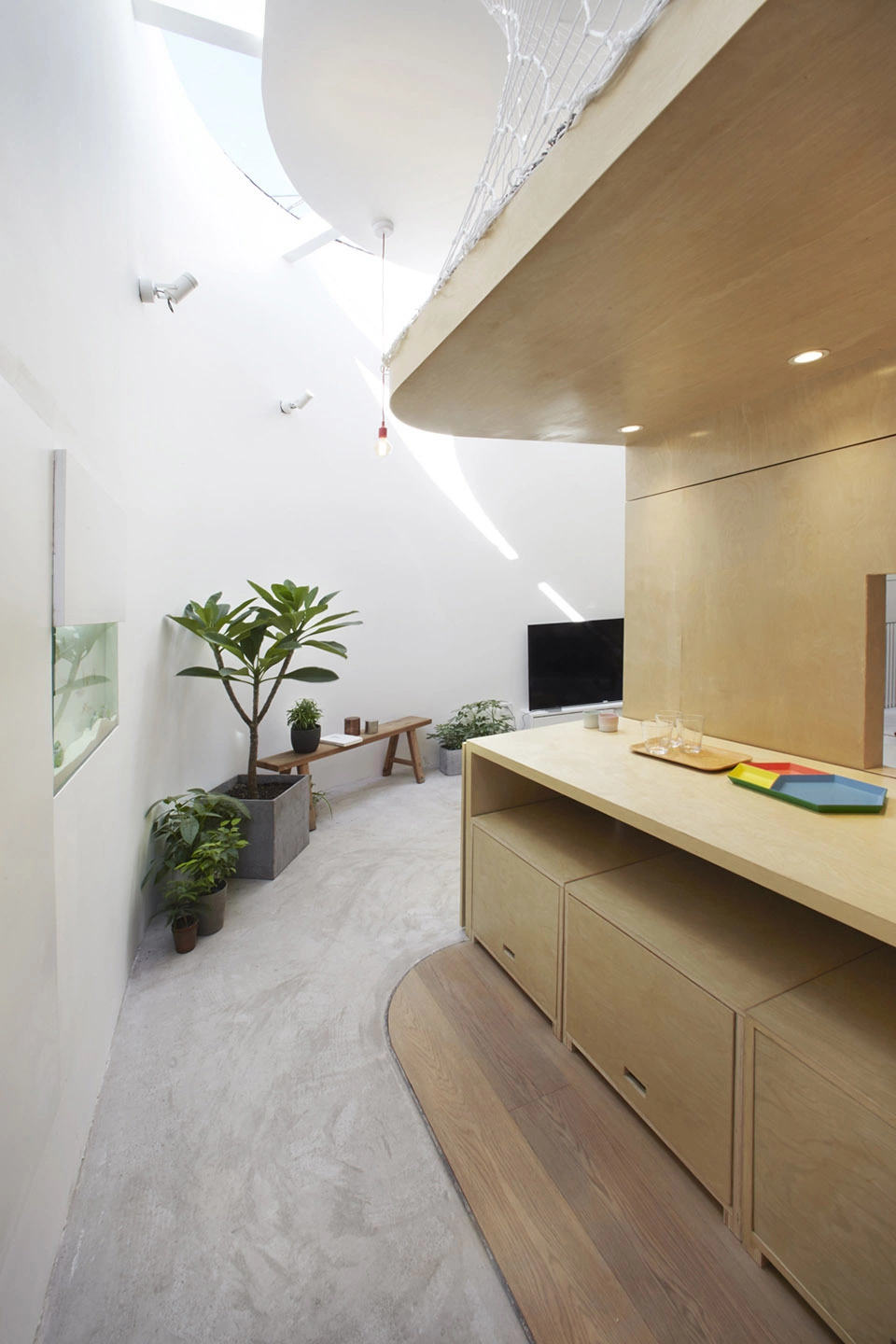

Recognizing that light is the most valuable commodity in a dense urban environment, the architects installed a long skylight spanning the length of the roof. Combined with large glass apertures, this intervention forces sunlight deep into the heart of the home, penetrating even the most secluded corners.
The skylight functions not merely as a light source but as a visual anchor. It creates a continuous path of illumination that mirrors the historic "corridor" experience found in traditional Beijing courtyard houses. This design choice maintains a psychological connection to the outdoors, mitigating the feeling of being enclosed within a narrow, concrete alleyway.
Chronology of the Transformation
The project’s timeline reflects the complexity of renovating heritage-sensitive properties:
- Early 2026: Site analysis and identification of spatial bottlenecks, focusing on the lack of light and airflow within the L-shaped footprint.
- Q2 2026: Development of the modular "box" concept, integrating the needs of three generations (children, parents, and grandparents).
- Summer 2026: Construction phase, focusing on structural reinforcement and the installation of the longitudinal roof skylight to facilitate natural illumination.
- September 19, 2026: Final inspection and completion of interior detailing, including the installation of soft materials and safety features for the children’s play areas on the second floor.
Functional Zoning and Social Implications
The layout successfully facilitates a balance between privacy and communal living. The kitchen has been strategically relocated to the far end of the floor plan, effectively anchoring the house. The living and dining areas flow seamlessly into the work zones, connected by the central corridor.

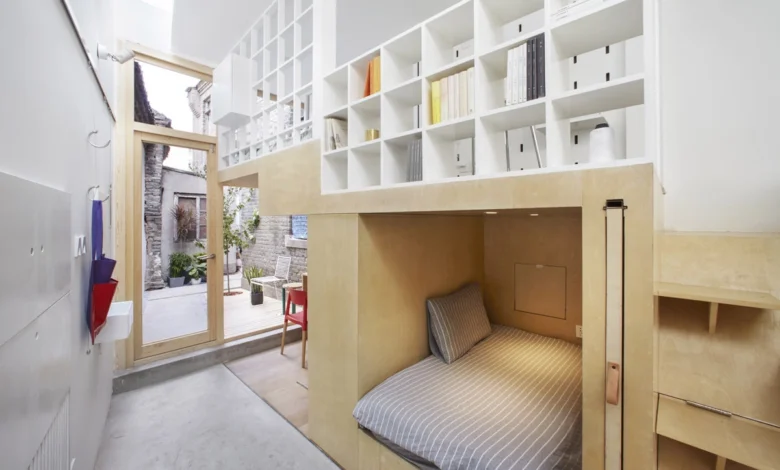

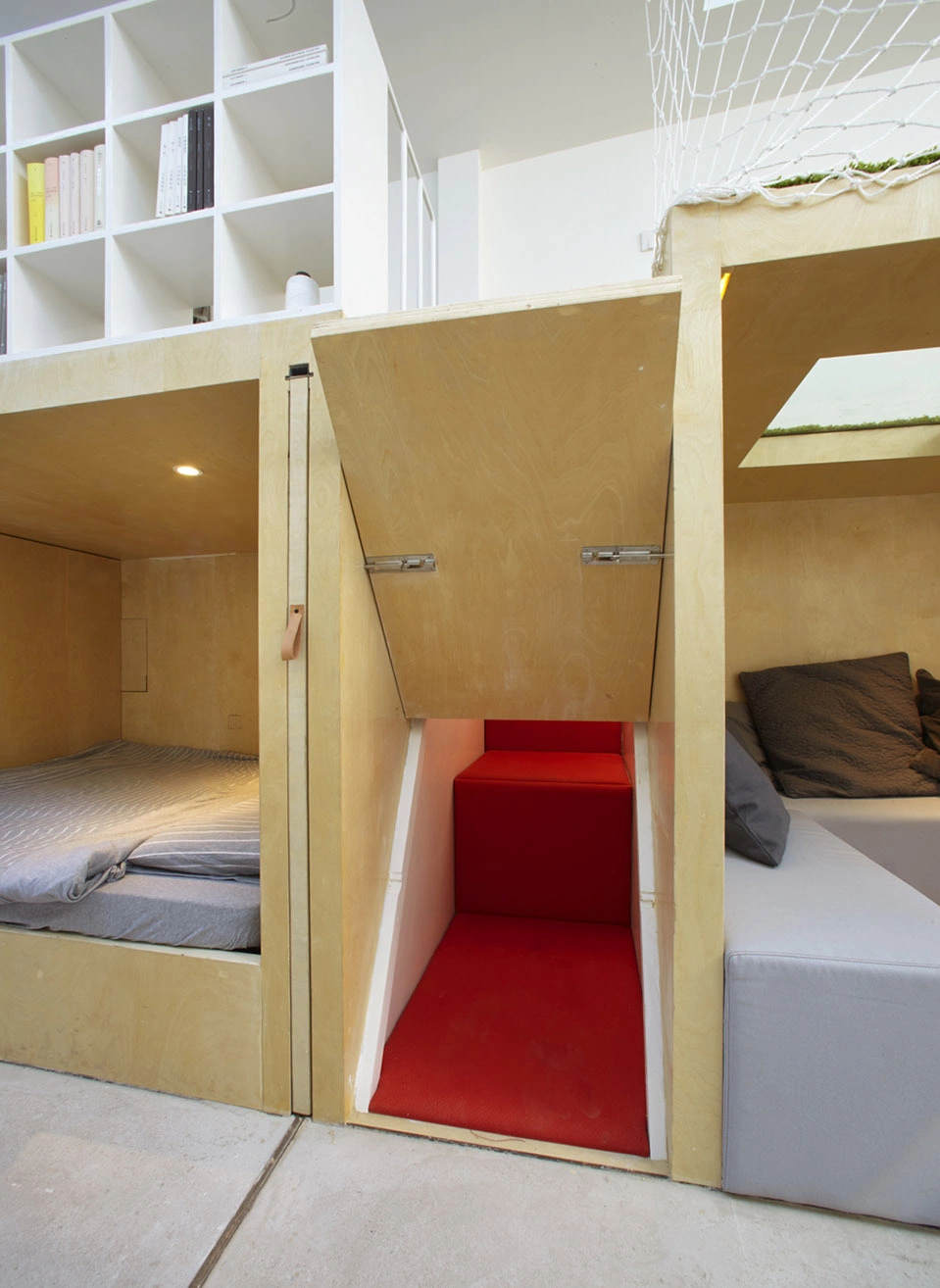

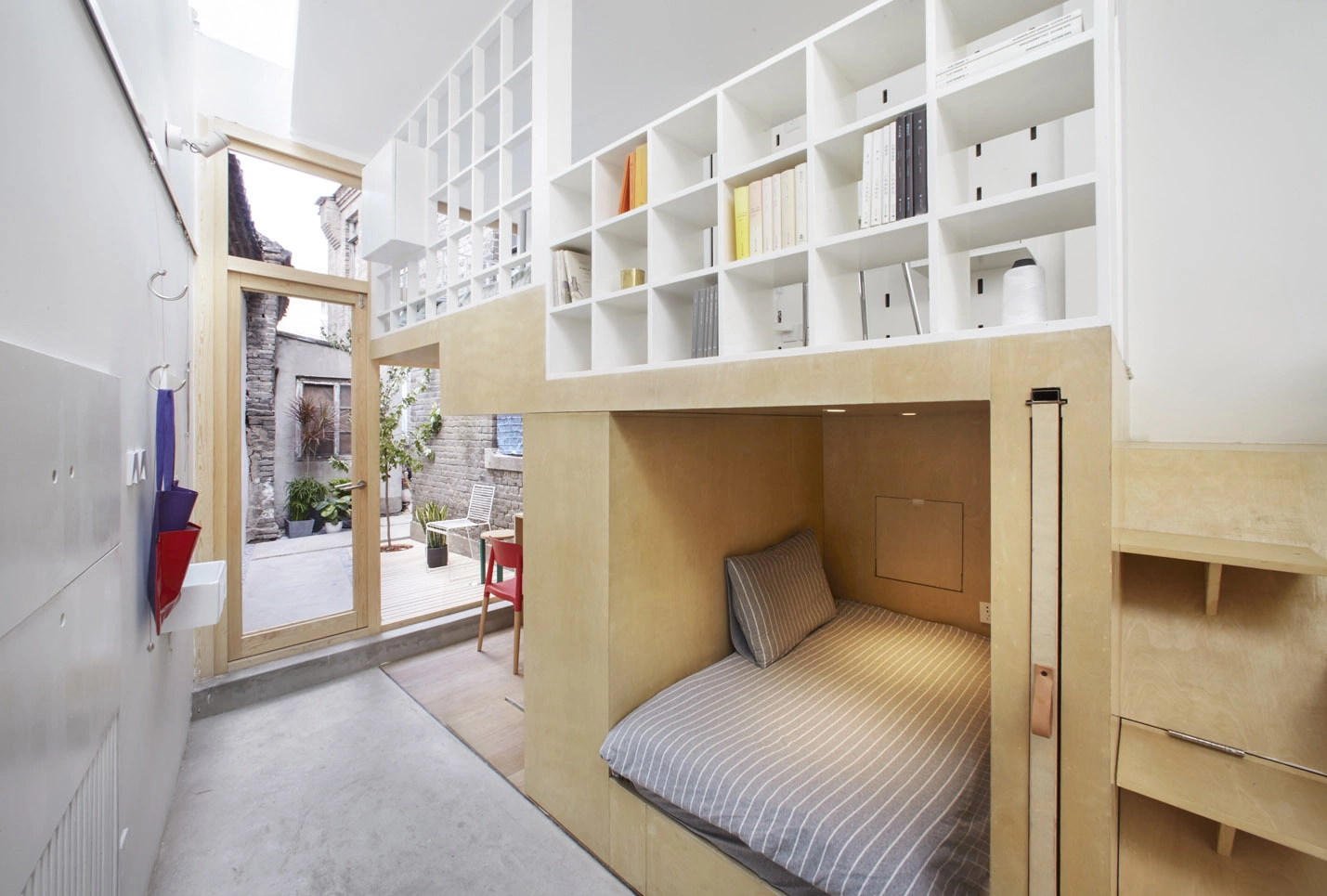

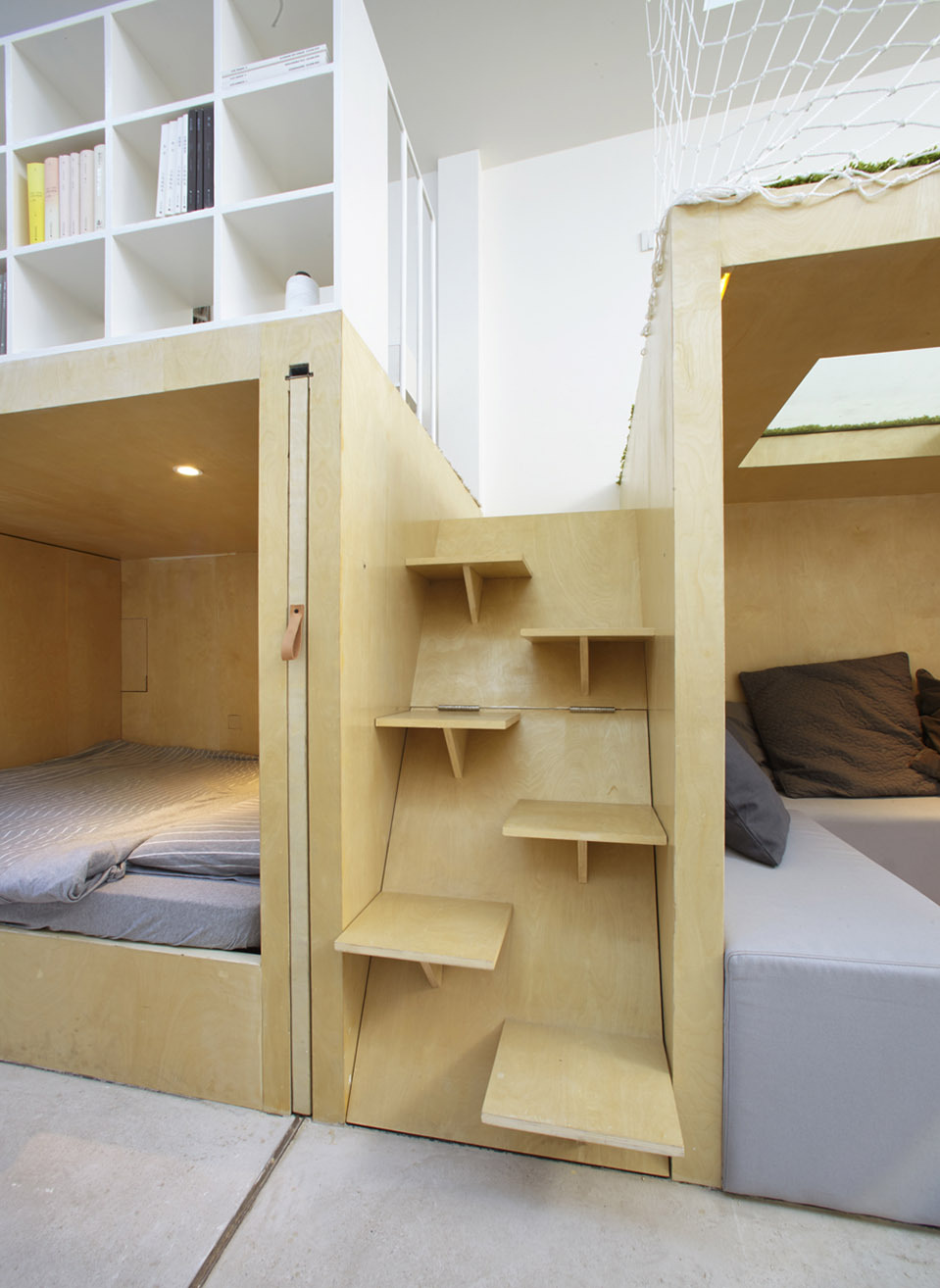

A significant feature is the transition area near the corner of the L-shaped plan, where greenery has been introduced. This "nature node" serves as a subtle, organic divider between functional areas, further enhancing the quality of life for the occupants. The second floor, accessible via a staircase positioned near the hallway, is primarily dedicated to the children, featuring a sleeping area that doubles as a recreational zone. This multi-purpose use of space is essential for families in high-density urban areas, where dedicated rooms for every activity are often a luxury.
Broader Impact: Urban Density and Modern Living
The Dengshikou Hutong project serves as a case study for sustainable urban infill. As major cities like Beijing grapple with the dual pressures of housing demand and heritage preservation, the "box-in-box" model provides a blueprint for adapting ancient, low-rise architecture to modern living standards without resorting to demolition.
From a sociological perspective, the design encourages interaction among family members. By avoiding the fragmentation caused by solid walls, the architecture forces a higher degree of visual and auditory communication between the generations. This is particularly important in Chinese culture, where multi-generational living is the norm but is often strained by the physical limitations of legacy housing.
Data and Design Specifications
The renovation utilized materials selected for their durability and acoustic properties. Soft furnishings and textile-based dividers are used extensively to dampen noise, a necessary consideration when six individuals share such a compact space. The floor-to-ceiling height in specific zones was optimized to ensure that even at the lowest points, the circulation remains fluid and unobstructed.
Architectural metrics indicate that the effective "usable" space was increased by nearly 30% through the vertical layering of the modular boxes, compared to a conventional, single-level renovation of the same site.
Conclusion and Future Outlook
The work of B.L.U.E. Architecture Studio represents a shift in how architects approach the "small home" movement in Asia. Rather than viewing the 43-square-meter constraint as a disadvantage, the team used it as a catalyst for creative, high-density residential solutions.
While not every residence can be transformed through such extensive modular interventions, the success of the Dengshikou Hutong residence highlights the potential for small-scale, high-impact design to solve the existential housing challenges of the 21st-century metropolis. By prioritizing light, verticality, and psychological space, this project proves that even the most restricted environments can be turned into functional, harmonious homes for large, multi-generational families. The project remains a testament to the idea that in architecture, the most innovative solutions often arise from the most difficult constraints.
